Features

Long-Term Investment Protection

Increase scale through 80 Gbps and add services via simple software upgrade that provides nondisruptive platform evolution and long-term investment protection.

SDN-Ready

Seamless integration with SDN controllers like Juniper Networks Contrail enables elastic service delivery, simplified operations, and service differentiation.

Service Agility

Ability to incorporate services inline and via MS-MIC provides new revenue opportunities in business and residential markets.

Compact Design

At 2 U, the full-featured MX5 is an ideal choice for space- and power-constrained facilities.

Overview

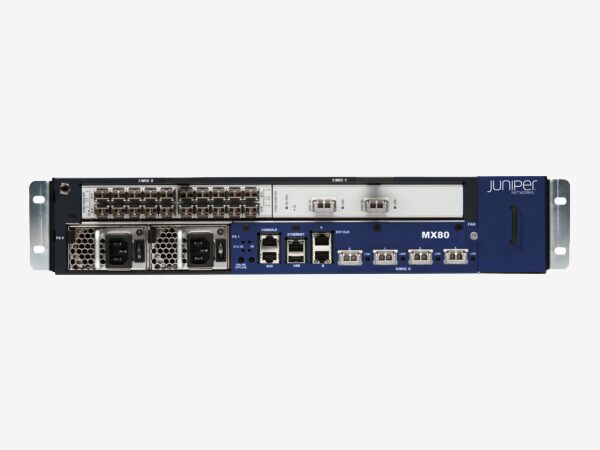

The compact, agile, and full-featured MX80 Universal Routing Platform is ideally suited for enterprise and service provider applications in facilities with limited space and power. MX80 routers are optimized for enterprise WAN, Data Center Interconnect (DCI), branch aggregation, and campus applications.

Equipped with four built-in 10GbE ports and two Modular Interface Card (MIC) slots, MX80 routers enable flexible network connectivity. An MS-MIC slot also is available on the MX80 for dedicated services support. MX80 routers enable cost-effective “pay as you grow” scale to meet evolving market requirements. This scale and flexibility is evident in the wide variety of MX Series use cases that have been proven in the world’s most demanding networks.

Specifications

mx80

MX 80

Specifications

System capacity 80 Gbps
Switch fabric capacity per slot N/A
DPCs and/or MPCs per chassis Two MS-MIC slots and four 10GbE interfaces enabled
Chassis per rack 24
Dimensions (W x H x D) Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm)
Maximum weight 30 lb / 13.7 kg
Mounting Front or center
Power options AC/DC: -40 to -72 VDC
100-240 VAC
Operating temperature 32° to 115° F (0° to 46° C) at sea level
Humidity 5 to 90 percent non-condensing
Altitude No performance degradation to 13,000 ft / 4,000 m
